RB 60

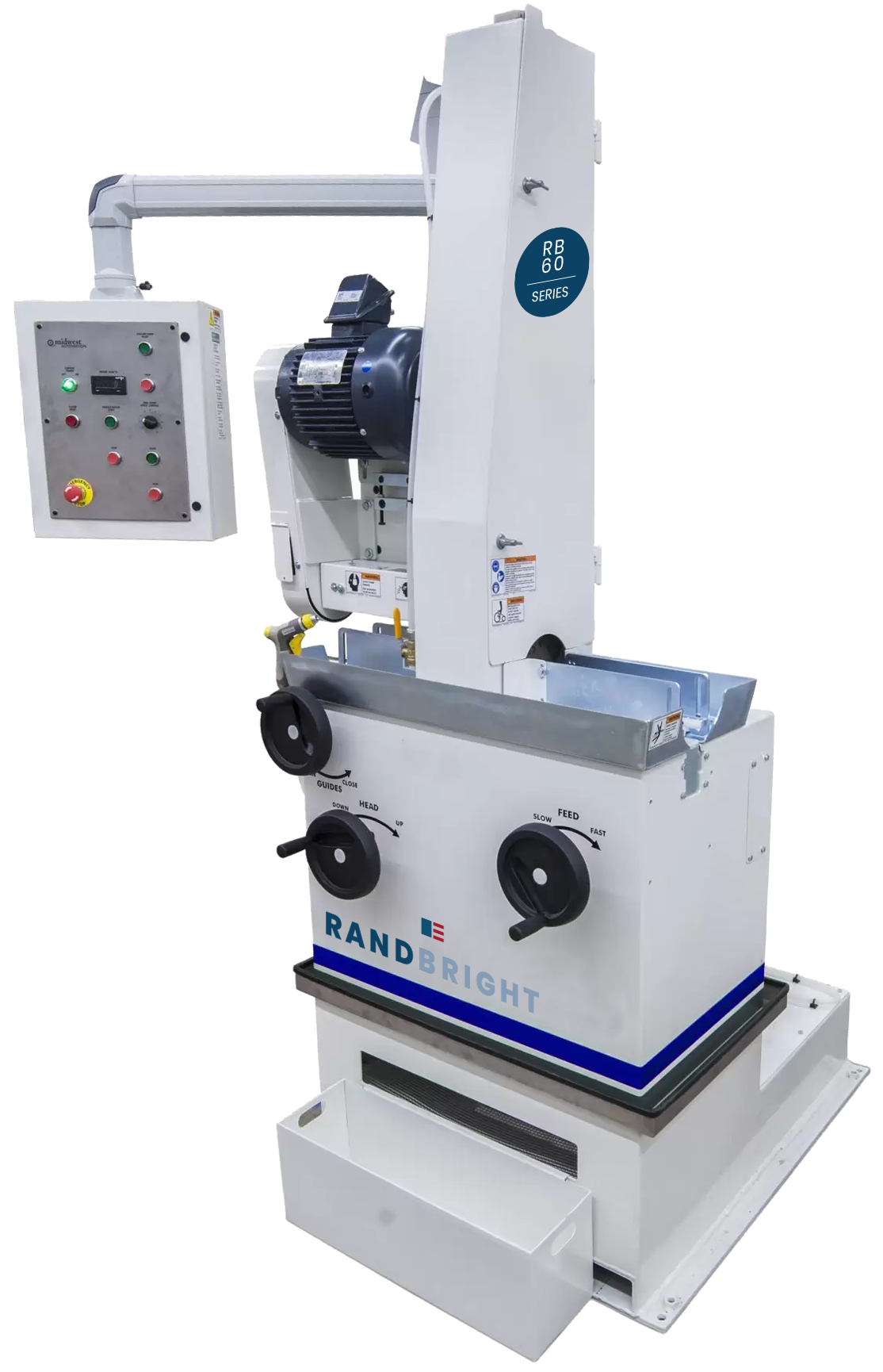

The RB 60 Dry Series machines are centerless, outside diameter deburring and finishing machines that are ideal for a large variety of cylindrical parts using abrasive belts and finishing wheels.

The RB 60 Wet Series machines are designed with the same features as the RB 60 Dry Series with the addition of a paper bed filter, stainless steel collection trays, and coolant nozzles for wet applications.

Request a Quote

RB 60

The RB 60 Dry Series machines are centerless, outside diameter deburring and finishing machines that are ideal for a large variety of cylindrical parts using abrasive belts and finishing wheels.

The RB 60 Wet Series machines are designed with the same features as the RB 60 Dry Series with the addition of a paper bed filter, stainless steel collection trays, and coolant nozzles for wet applications.

Request a Quote
The RB 60 Wet Series comes with the following standard features:
  • Heavy-duty welded steel frame
  • Rubber-coated feed drum with handwheel adjusted skew angle and mechanical counter
  • Electronic variable speed feed drum control
  • Head assembly(s) mounted on dovetail slides with mechanical counter
  • TEFC-rated abrasive belt/wheel motor with large diameter spindle
  • Digital ammeter for each head assembly
  • Large diameter contact drum and idler roller are high speed balanced
  • Pneumatic-loaded idler roller with mechanical tracking system
  • Handwheel adjusted part diameter and head pressure
  • Handwheel adjusted guide blade supports with standard UHMW inserts
  • 24 volt electric control panel with push button controls
  • 3M #356 flanges, abrasive belts and Scotch-Brite™ wheels
  • Manual paper bed filter with clean tank, sludge bin and clean fluid return pump (single head)
  • Automatic paper bed filter with 10 GPM flow rate and 45 gallon tank (multiple head)
  • Two (2) flexible coolant nozzles per head
  • Stainless steel catch pan to contain water/coolant
Optional Accessories:
  • Automatic load/unload tables
  • Custom guide blade non-marring inserts
  • Short part and small diameter part kits
  • Go/No Go light kits
  • Pop-up head kits
  • Buffing compound applicators
  • Automatic lubrication systems
  • Electronic abrasive head speed and thickness controls
The RB 60 Dry Series comes with the following standard features:
  • Heavy-duty welded steel frame
  • Rubber-coated feed drum with handwheel adjusted skew angle and mechanical counter
  • Electronic variable speed feed drum control
  • Head assembly(s) mounted on dovetail slides with mechanical counter
  • TEFC-rated abrasive belt/wheel motor with large diameter spindle
  • Digital ammeter for each head assembly
  • Large diameter contact drum and idler roller are high speed balanced
  • Pneumatic-loaded idler roller with mechanical tracking system
  • Handwheel adjusted part diameter and head pressure
  • Handwheel adjusted guide blade supports with standard UHMW inserts
  • 24 volt electric control panel with push button controls
  • 3M #356 flanges, abrasive belts and Scotch-Brite™ wheels
  • Available in belt head, brush head and/or buff head (dry only) configurations
  • Dust collection pickup(s)
Optional Accessories:
  • Automatic load/unload tables
  • Custom guide blade non-marring inserts
  • Short part and small diameter part kits
  • Go/No Go light kits
  • Pop-up head kits
  • Buffing compound applicators
  • Automatic lubrication systems
  • Electronic abrasive head speed and thickness controls

Motor: 5 HP with 1.25″ diameter spindle

Feed Drum: 18″ x 7.25″

Abrasive Belt Size: 4″ x 90″

Abrasive Wheel Size: 4″ x 12″

Maximum Part Diameter: 6″
